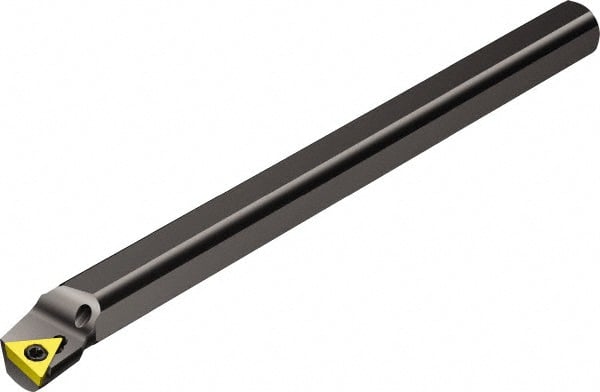

Sandvik Coromant - 8.5mm Min Bore Diam, 80mm OAL, 6mm Shank Diam, A..STFCR/L Indexable Boring Bar - Screw-On Holding Method
Item #: 49441611
Brand: Sandvik Coromant
Model #: 5721359
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..STFCR/L |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 8.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.3346 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw-On |
| Rake | Neutral |
| Lead Angle | -1 |
| Center to Cutting Edge (mm) | 4.50 |
| Center to Cutting Edge (Decimal Inch) | 0.1772 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCMT 06 T1 02 |
| Toolholder Material | Steel |
