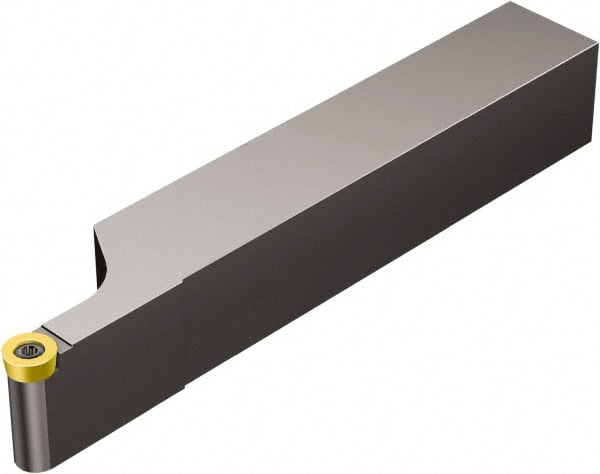

Sandvik Coromant - SRDC, Left Hand Cut, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, RCMT 06 02 M0 Insert Compatibility, Series CoroTurn 107
Item #: 49449135
Brand: Sandvik Coromant
Model #: 5751335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | RCMT 06 02 M0 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 20.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
