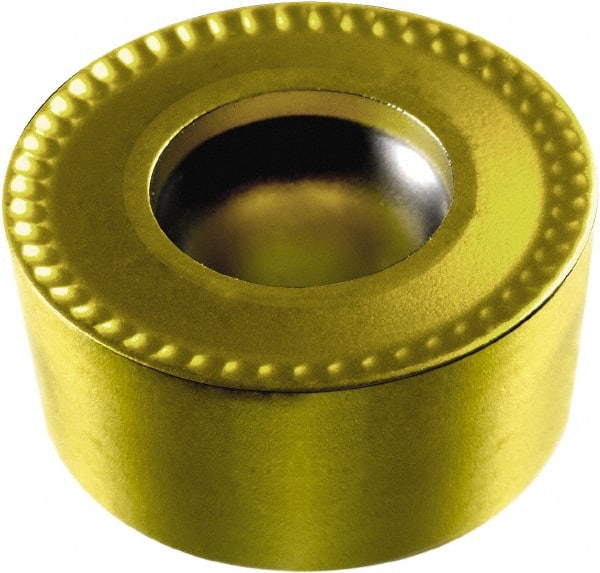

Sandvik Coromant - RCMT0602M0 RCMT Grade S05F Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 1/4" Inscr Circle, 3/32" Thick
Item #: 49454812
Brand: Sandvik Coromant
Model #: 5740698
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0602M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Manufacturer's Grade | S05F |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | RCMT |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | RCMT0602M0S05F |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5740698 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
