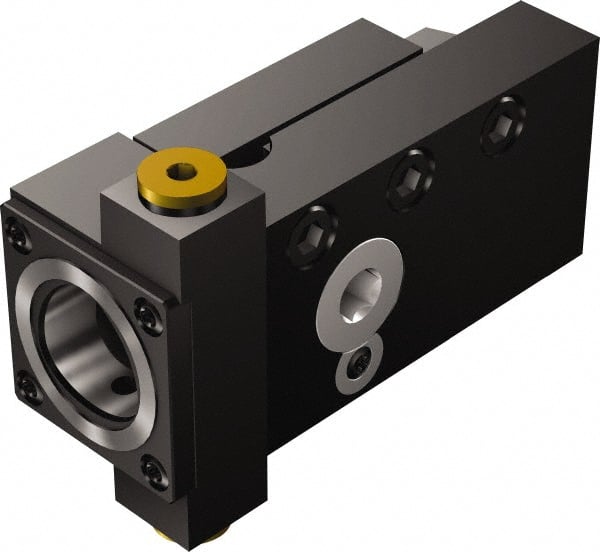

Sandvik Coromant - Right Hand Cut, Square Shank Lathe Modular Clamping Unit - 32mm Square Shank Diam, 20mm Square Shank Width, 3.74" OAL, Through Coolant
Item #: 49460793
Brand: Sandvik Coromant
Model #: 5726770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Square Shank |
| Cutting Direction | Right Hand |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Square Shank Width (mm) | 20.00 |
| Square Shank Width (Decimal Inch) | 0.7874 |
| Through Coolant | Yes |
| Head Height (mm) | 62.00 |
| Head Height (Decimal Inch) | 2.4409 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Coolant Hole Thread Size | G1/8 |
