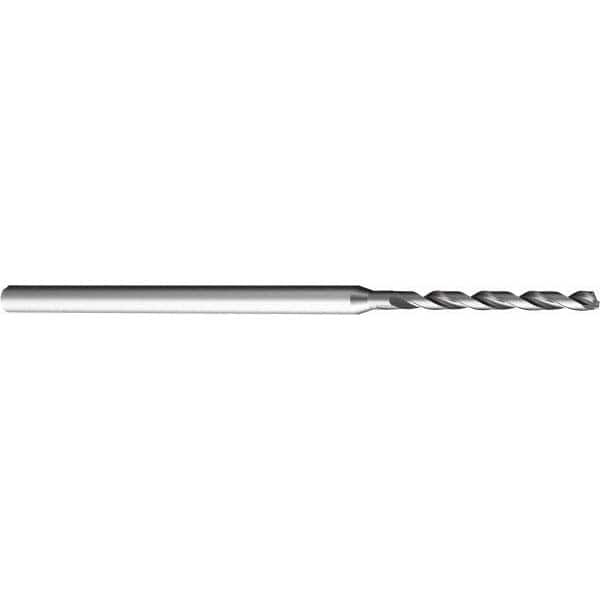

Sandvik Coromant - 2.6mm, 140° Point, Solid Carbide Micro Drill Bit
Item #: 49570559
Brand: Sandvik Coromant
Model #: 6151190
Features and Benefits
Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature than TiN. As a result, it is better for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1024 |
| Drill Bit Size (mm) | 2.6 |
| Shank Diameter (mm) | 3 |
| Shank Diameter (Inch) | 0.11811 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 84 |
| Overall Length (Decimal Inch) | 3.3071 |
| Flute Length (mm) | 38.00 |
| Flute Length (Decimal Inch) | 1.49606 |
| Through Coolant | Yes |
| Maximum Drilling Depth (mm) | 31.50 |
| Series/List | CoroDrill 862 |
