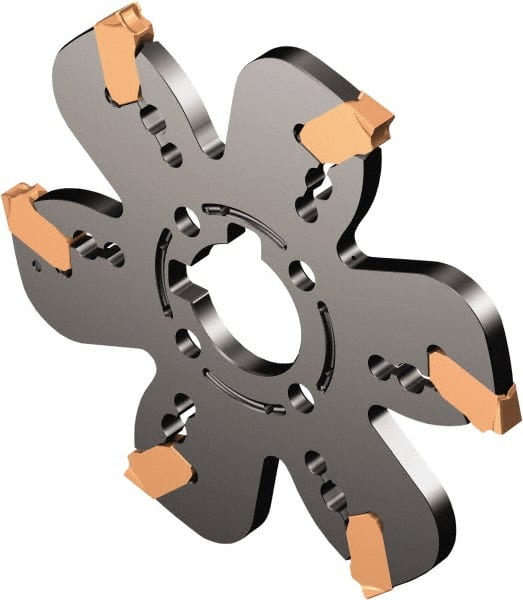

Sandvik Coromant - Arbor Hole Connection, 0.0787" Cutting Width, 1.2598" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 10 Tooth Indexable Slotting Cutter - AQD..Y..C Toolholder, E Insert, Right Hand Cutting Direction
Item #: 49463474
Brand: Sandvik Coromant
Model #: 6657549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | Y31 |
| Number of Teeth | 10 |
| Toolholder Style | AQD..Y..C |
| Series | CoroMill QD |
| Insert Style | E |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 3400 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 5.0000 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Manufacturers Catalog Number | 6657549 |
| Complete Insert Compatibility1 | QD-NE-0200-020E-PM |
| Overall Height (mm) | 2.65 |
| Overall Height (Decimal Inch) | 0.1043 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
