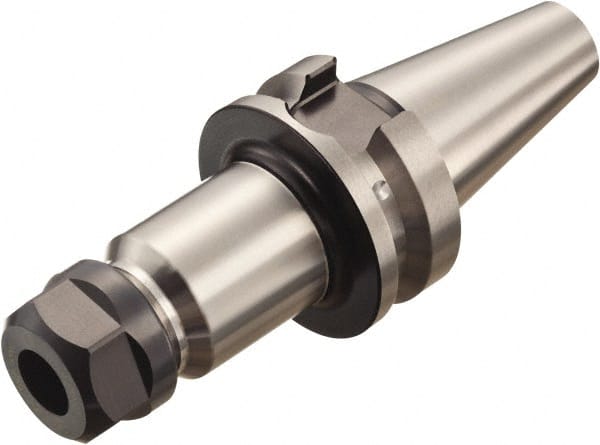

Sandvik Coromant - 130mm Projection, ER25 Collet Chuck - 178.4mm OAL
Item #: 49502743
Brand: Sandvik Coromant
Model #: 6073981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet Series | ER25 |
| Projection (mm) | 130.00 |
| Projection (Decimal Inch) | 5.1181 |
| Through Coolant | Yes |
| Overall Length (mm) | 178.40 |
| Overall Length (Decimal Inch) | 7.0236 |
| Type | ER Collet |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| Maximum RPM | 25000 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
