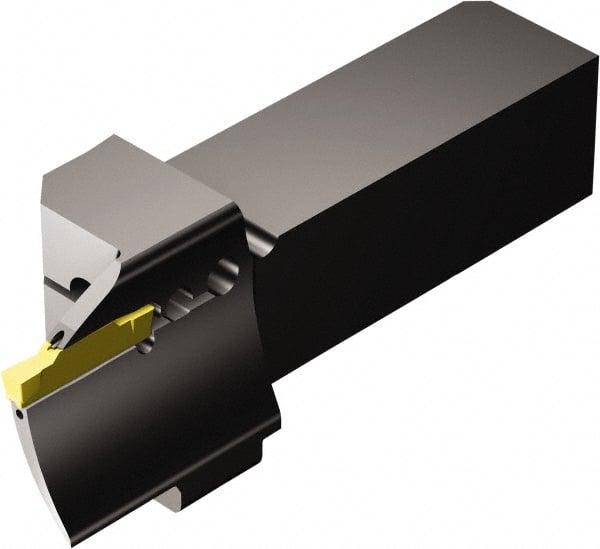

Sandvik Coromant - QS-R/LF123..C..E..-B, External, Left Hand, 14mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 100.9mm OAL, Through Coolant
Item #: 49506751
Brand: Sandvik Coromant
Model #: 6537515
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 14.00 |
| Overall Length (mm) | 100.90 |
| Overall Length (Decimal Inch) | 3.9724 |
| Toolholder Style | QS-R/LF123..C..E..-B |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 2.0433 |
| Maximum Bore Depth (Decimal Inch) | 2.0433 |
| Back of Bar to Cutting Edge (mm) | 100.90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9724 |
| Center to Cutting Edge (mm) | 20.50 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.00 |
| Head Length (mm) | 51.90 |
| Head Length (Decimal Inch) | 2.0433 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
