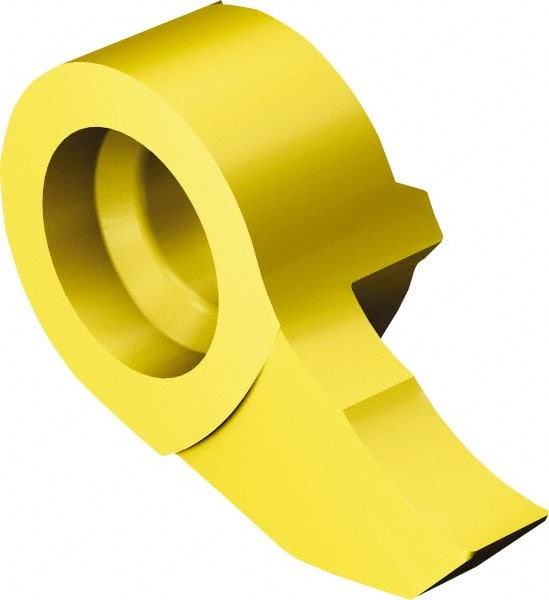

Sandvik Coromant - MB..G (CIRCLIP) Grade 1025, 0.73mm Cutting Width Carbide Grooving Insert - 1.2mm Max Depth of Cut, Left Hand, TiAlN/TiN Finish
Item #: 49507825
Brand: Sandvik Coromant
Model #: 5735711
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB..G (CIRCLIP) |
| Material | Carbide |
| Cutting Width (mm) | 0.73 |
| Cutting Width (Decimal Inch) | 0.0287 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Coating Process | PVD |
| Overall Length (mm) | 5.90 |
| Overall Length (Inch) | 5.9000 |
| Overall Length (Decimal Inch) | 0.2323 |
| Series | CoroCut MB |
| ISO Number | MB-09G070-00-14L 1025 |
