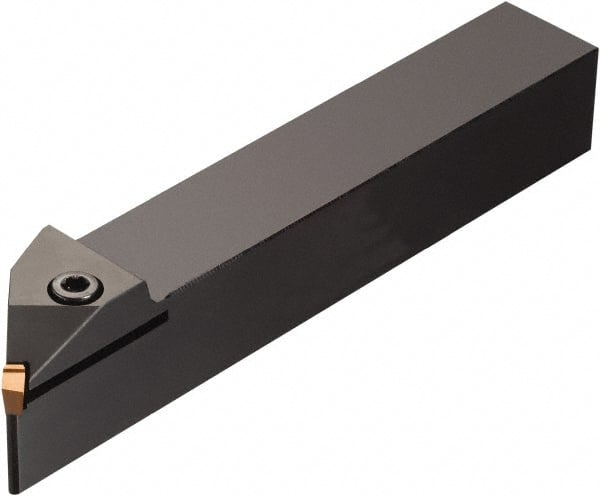

Sandvik Coromant - R/LS151.22, External, Right Hand, 1.5mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-300-25- 4U Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 49509888
Brand: Sandvik Coromant
Model #: 5741348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | R/LS151.22 |
| Insert Compatibility | N151.2-300-25- 4U |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Insert Seat Size | 25 |
| Maximum Bore Depth (Decimal Inch) | 1.0630 |
| igrvh Maximum Bore Depth (mm) | 27.00 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 25.60 |
| Center to Cutting Edge (Decimal Inch) | 1.0079 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-300-25- 4U |
