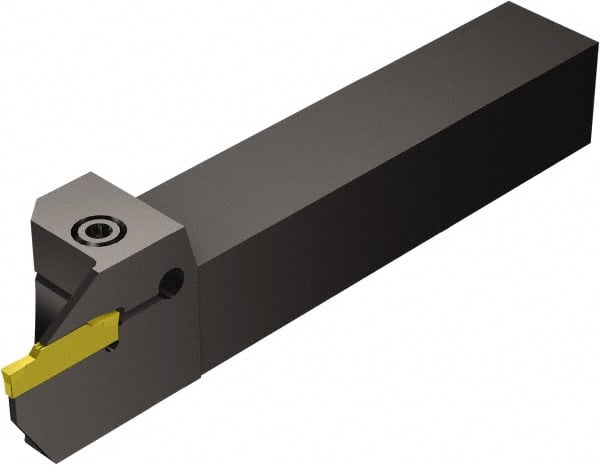

Sandvik Coromant - R/LF123..D, Internal or External, Left Hand, 22mm Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 49512510
Brand: Sandvik Coromant
Model #: 5856796
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Maximum Depth of Cut (mm) | 22.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | R/LF123..D |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | H |
| Maximum Hole Depth (Decimal Inch) | 1.7323 |
| Maximum Bore Depth (Decimal Inch) | 1.7323 |
| igrvh Maximum Bore Depth (mm) | 44.00 |
| Maximum Workpiece Diameter (mm) | 52.50 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0669 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 25.60 |
| Center to Cutting Edge (Decimal Inch) | 1.0079 |
| Head Length (mm) | 44.00 |
| Head Length (Decimal Inch) | 1.7323 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
