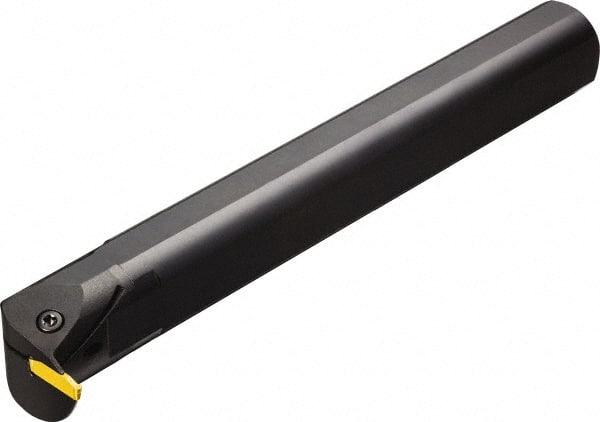

Sandvik Coromant - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, R/LAG123..B Indexable Boring Bar - N123K2-0600-GM Insert
Item #: 49512999
Brand: Sandvik Coromant
Model #: 5733709
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | R/LAG123..B |
| Series | CoroCut 1-2 |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | N123K2-0600-GM |
| Through Coolant | Yes |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 31.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2205 |
| Rake Angle | 0 |
| Complete Insert Compatibility | N123K2-0600-GM |
| Toolholder Material | Steel |
