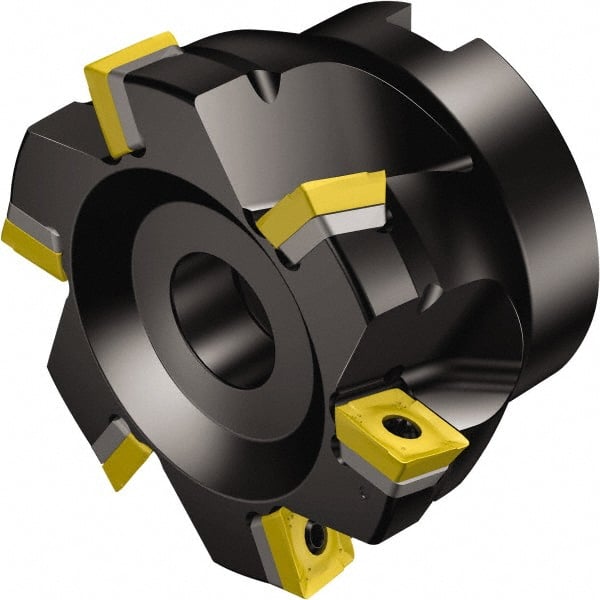

Sandvik Coromant - 16 Inserts, 200mm Cut Diam, 47.63mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, 490R-1404 Insert Compatibility, Series CoroMill 490
Item #: 49519408
Brand: Sandvik Coromant
Model #: 5844003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Decimal Inch) | 1.8750 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Jxx |
| Maximum RPM | 6000 |
| ISO Number | A490-200J47.625-14M |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
