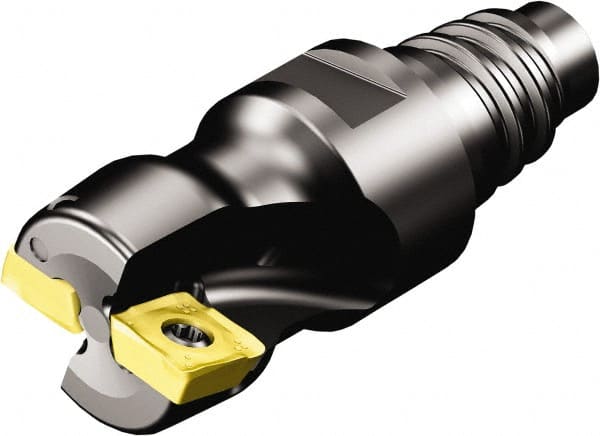

Sandvik Coromant - 2 Inserts, 19.05mm Cut Diam, 18.5mm Arbor Diam, 5.49mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 49.5mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49519655
Brand: Sandvik Coromant
Model #: 6416894
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (mm) | 18.50 |
| Arbor Hole Diameter (Decimal Inch) | 0.7283 |
| Overall Height (mm) | 49.50 |
| Overall Height (Decimal Inch) | 1.9488 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.2160 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | A490..EH |
| Maximum RPM | 50600 |
| ISO Number | A490-019EH20-08L |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
