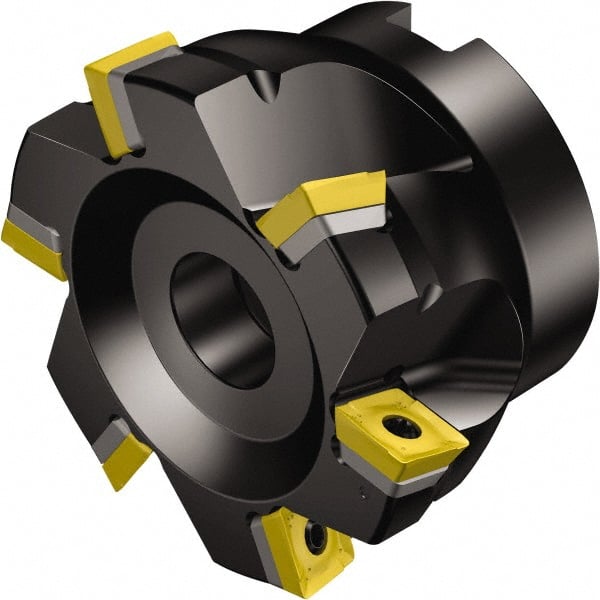

Sandvik Coromant - 8 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49519937
Brand: Sandvik Coromant
Model #: 5844040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Qxx |
| Maximum RPM | 10100 |
| ISO Number | 490-080Q27-14H |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
