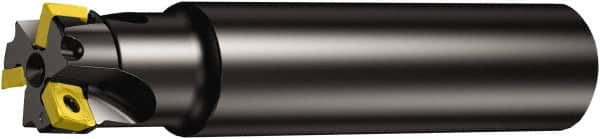

Sandvik Coromant - 4 Inserts, 40mm Cut Diam, 32mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 170mm High, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49520281
Brand: Sandvik Coromant
Model #: 5829325
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 170.00 |
| Overall Height (Decimal Inch) | 6.6929 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Axx |
| Maximum RPM | 26400 |
| ISO Number | 490-040A32-14H |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
