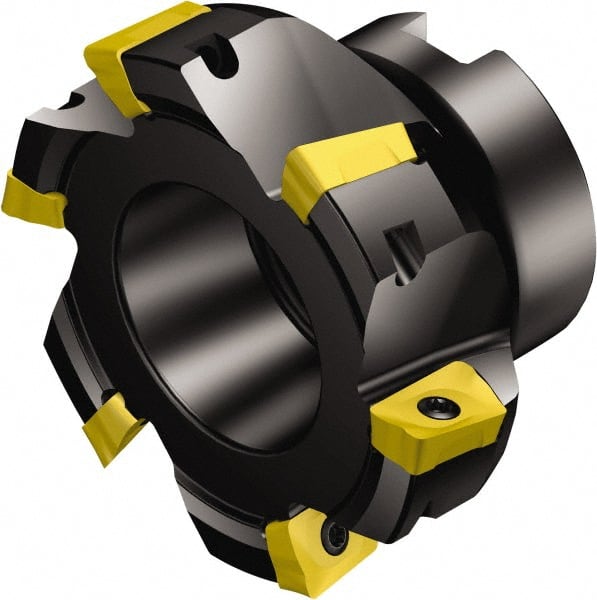

Sandvik Coromant - 12 Inserts, 160mm Cut Diam, 50.8mm Arbor Diam, 15.4mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, R390-18.. Insert Compatibility, Series CoroMill 390
Item #: 49520737
Brand: Sandvik Coromant
Model #: 5740267
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | RA390..Jxx |
| Maximum RPM | 4000 |
| ISO Number | RA390-160J50.8-18M |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
