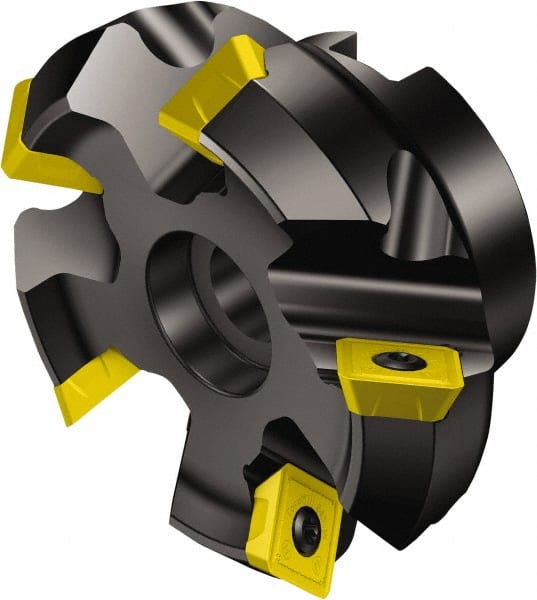

Sandvik Coromant - 250mm Cut Diam, 47.63mm Arbor Hole, 10mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, R245-18T6.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 49520984
Brand: Sandvik Coromant
Model #: 5739953
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250 |
| Cutting Diameter (Decimal Inch) | 9.8425 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Decimal Inch) | 1.8750 |
| Lead Angle | 45 |
| Overall Height (mm) | 63 |
| Insert Compatibility | R245-18T6.. |
| Series | CoroMill 245 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 10 |
| Cutter Style | RA245..Jxx |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 3400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-18T6.. |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R245-18T6.. |
| Maximum RPM | 3400 |
| Toolholder Material | Steel |
| Through Coolant | No |
