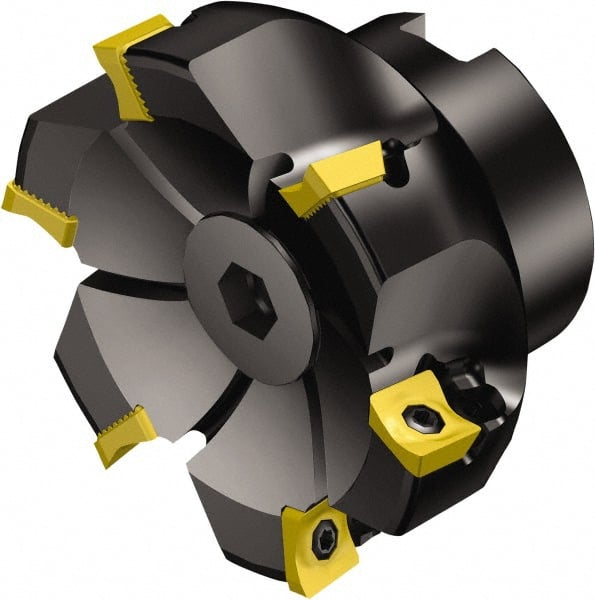

Sandvik Coromant - 16 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, R590-1105.. Insert Compatibility, Series CoroMill Century
Item #: 49521271
Brand: Sandvik Coromant
Model #: 5747270
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R590-1105.. |
| Series | CoroMill Century |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | R590..Qxx |
| Maximum RPM | 15700 |
| ISO Number | R590-200Q60S-11M |
| Complete Insert Compatibility | R590-1105.. |
| Toolholder Material | Steel |
