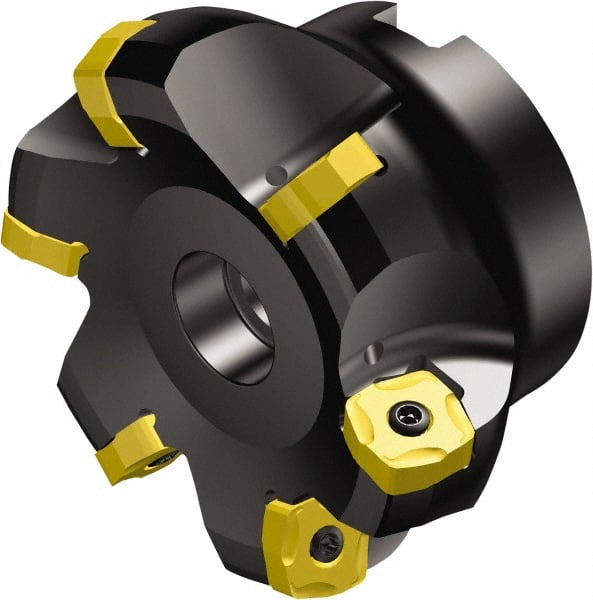

Sandvik Coromant - 50mm Cut Diam, 22mm Arbor Hole, 6mm Max Depth of Cut, 65° Indexable Chamfer & Angle Face Mill - 5 Inserts, R365-1505ZNE Insert, Right Hand Cut, Series CoroMill 365
Item #: 49521487
Brand: Sandvik Coromant
Model #: 5745389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 65 |
| Overall Height (mm) | 50 |
| Insert Compatibility | R365-1505ZNE |
| Series | CoroMill 365 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.23622 |
| Number of Cutter Inserts | 5 |
| Cutter Style | R/L365..Qxx-S |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 15700 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
| Complete Insert Compatibility | R365-1505ZNE |
| Maximum RPM | 15700 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
