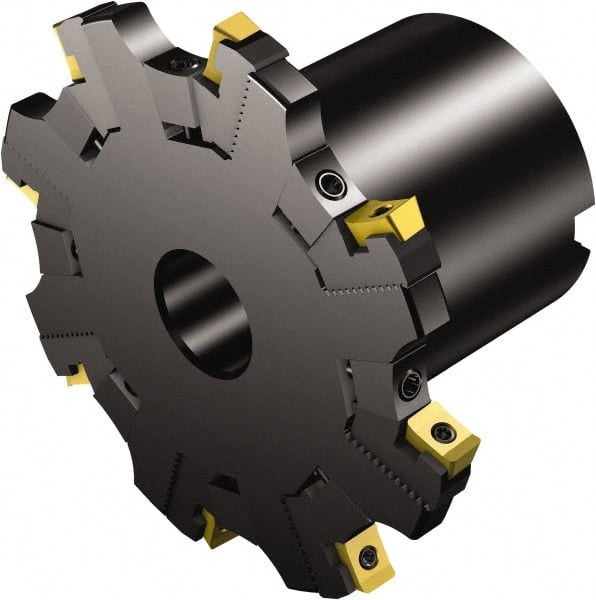

Sandvik Coromant - 60 Connection, 309mm Cutter Diam, 2.3622" Hole Diam, 20 Tooth Indexable Slotting Cutter - R331.52..Qxx..L Toolholder, N331.1A-11 Insert, Right Hand Cutting Direction
Item #: 49521511
Brand: Sandvik Coromant
Model #: 5745357
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 60 |
| Cutter Diameter (mm) | 309.00 |
| Cutter Diameter (Decimal Inch) | 12.1654 |
| Hole Diameter (mm) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Modular Connection Size | 60 |
| Number of Teeth | 20 |
| Toolholder Style | R331.52..Qxx..L |
| Series | CoroMill 331 |
| Insert Style | N331.1A-11 |
| Number of Cutter Inserts | 20 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 7600 |
| Maximum RPM | 7600 |
| Hub Diameter (mm) | 136.00 |
| Hub Diameter (Decimal Inch) | 5.3543 |
| Hub Diameter (mm) | 136.00 |
| Hub Diameter (Decimal Inch) | 5.3543 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
