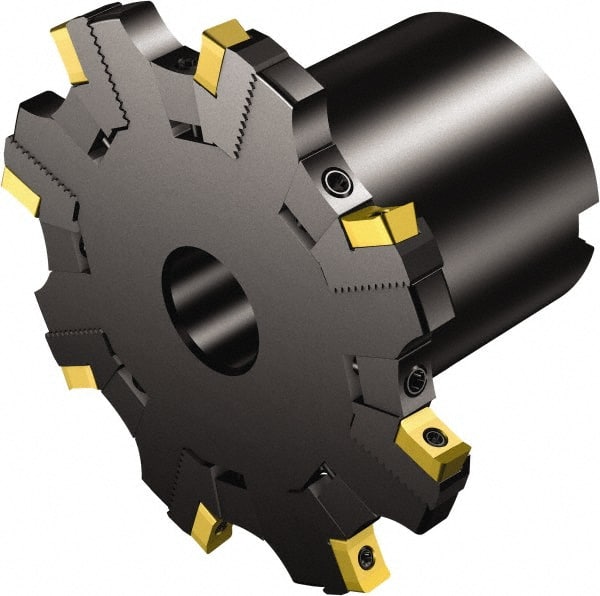

Sandvik Coromant - 32 Connection, 121mm Cutter Diam, 1.2598" Hole Diam, 10 Tooth Indexable Slotting Cutter - R331.52..Qxx..R Toolholder, N331.1A-08 Insert, Right Hand Cutting Direction
Item #: 49521826
Brand: Sandvik Coromant
Model #: 5745293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 32 |
| Cutter Diameter (mm) | 121.00 |
| Cutter Diameter (Decimal Inch) | 4.7638 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Modular Connection Size | 32 |
| Number of Teeth | 10 |
| Toolholder Style | R331.52..Qxx..R |
| Series | CoroMill 331 |
| Insert Style | N331.1A-08 |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 14100 |
| Maximum RPM | 14100 |
| Hub Diameter (mm) | 64.00 |
| Hub Diameter (Decimal Inch) | 2.5197 |
| Hub Diameter (mm) | 64.00 |
| Hub Diameter (Decimal Inch) | 2.5197 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-08 |
