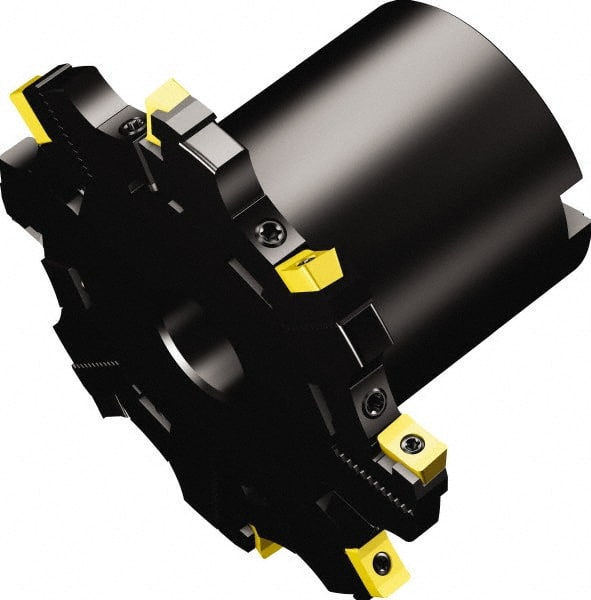

Sandvik Coromant - Arbor Connection, 0.8071" Cutting Width, 2.2047" Depth of Cut, 250mm Cutter Diam, 2.3622" Hole Diam, Indexable Slotting Cutter - 2.3622" Shank Diam, Right Hand Cutting Direction
Item #: 49522055
Brand: Sandvik Coromant
Model #: 5745144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 20.50 |
| Cutting Width (Decimal Inch) | 0.8071 |
| Cutting Width (Decimal Inch) | 0.807087 |
| Cutting Width (mm) | 20.5 |
| Maximum Depth of Cut (mm) | 56.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2047 |
| Maximum Depth of Cut (Decimal Inch) | 2.2047 |
| Maximum Depth of Cut (mm) | 56 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Shank Diameter (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 2.3622 |
| Modular Connection Size | 60 |
| Series | CoroMill 331 |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 7100 |
| Maximum RPM | 7100 |
| Minimum Cutting Width (Decimal Inch) | 0.8071 |
| Maximum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (mm) | 23.50 |
| Maximum Cutting Width (Decimal Inch) | 0.925197 |
| Maximum Cutting Width (mm) | 23.5 |
| Hub Diameter (mm) | 136.00 |
| Hub Diameter (Decimal Inch) | 5.3543 |
| Hub Diameter (mm) | 136.00 |
| Hub Diameter (Decimal Inch) | 5.3543 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 9.8425 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-14 |
