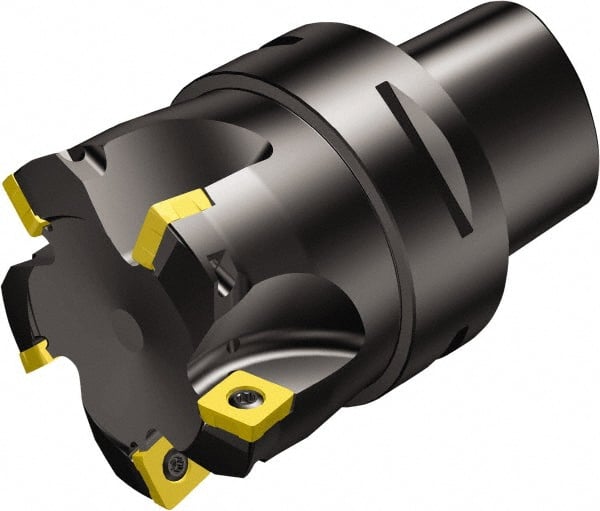

Sandvik Coromant - 5 Inserts, 1.5709" Cutter Diam, 0.0472" Max Depth of Cut, Indexable High-Feed Face Mill - R210..Cx Toolholder, R210-090412M- Inserts, Series CoroMill 210
Item #: 49522691
Brand: Sandvik Coromant
Model #: 5742495
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5709 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Shank Diameter (Decimal Inch) | 50.0000 |
| Series | CoroMill 210 |
| Cutter Style | R210..Cx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | R210-090412M- |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 23600 |
| Maximum Body Diameter (Decimal Inch) | 2.0063 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R210-090412M- |
