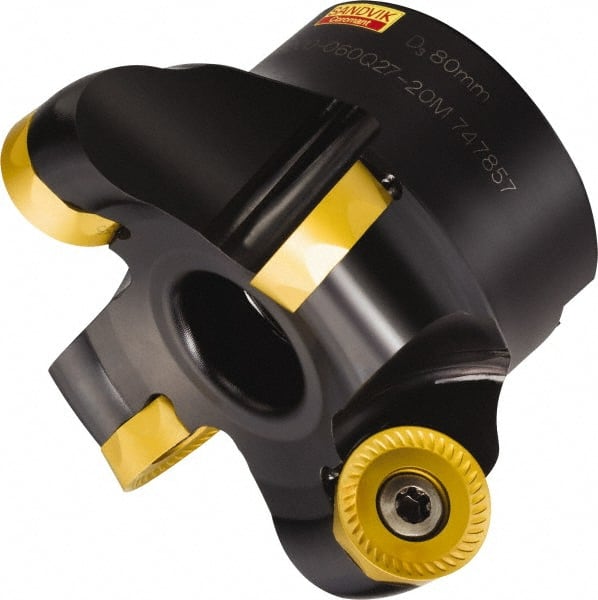

Sandvik Coromant - 4 Inserts, 2.3622" Cutter Diam, 0.3937" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.4882" Keyway Width, R200..Qxx Toolholder, RCKT 20 06 M0 Inserts, Series CoroMill 200
Item #: 49522766
Brand: Sandvik Coromant
Model #: 5742611
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3622 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Series | CoroMill 200 |
| Cutter Style | R200..Qxx |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RCKT 20 06 M0 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10600 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 20 06 M0 |
| Keyway Width (Decimal Inch) | 0.4882 |
