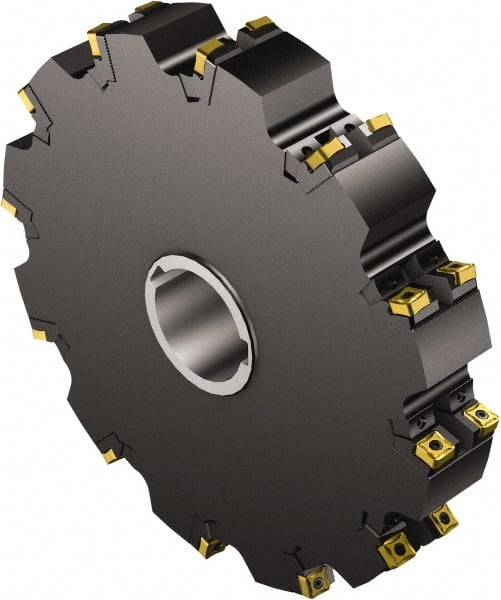

Sandvik Coromant - Arbor Connection, 1.0709" Cutting Width, 3.5236" Depth of Cut, 250mm Cutter Diam, 1.9685" Hole Diam, Indexable Slotting Cutter - 1.9685" Shank Diam, N331.1A-11 Insert, Neutral Cutting Direction
Item #: 49522964
Brand: Sandvik Coromant
Model #: 5738638
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 27.20 |
| Cutting Width (Decimal Inch) | 1.0709 |
| Cutting Width (Decimal Inch) | 1.0709 |
| Cutting Width (mm) | 27.2 |
| Maximum Depth of Cut (mm) | 89.50 |
| Maximum Depth of Cut (Decimal Inch) | 3.5236 |
| Maximum Depth of Cut (Decimal Inch) | 3.5236 |
| Maximum Depth of Cut (mm) | 89.5 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Series | CoroMill 331 |
| Insert Style | N331.1A-11 |
| Number of Cutter Inserts | 32 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 8500 |
| Maximum RPM | 8500 |
| Minimum Cutting Width (Decimal Inch) | 1.0709 |
| Maximum Cutting Width (Decimal Inch) | 1.1890 |
| Maximum Cutting Width (mm) | 30.20 |
| Maximum Cutting Width (Decimal Inch) | 1.18898 |
| Maximum Cutting Width (mm) | 30.2 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 9.8425 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
