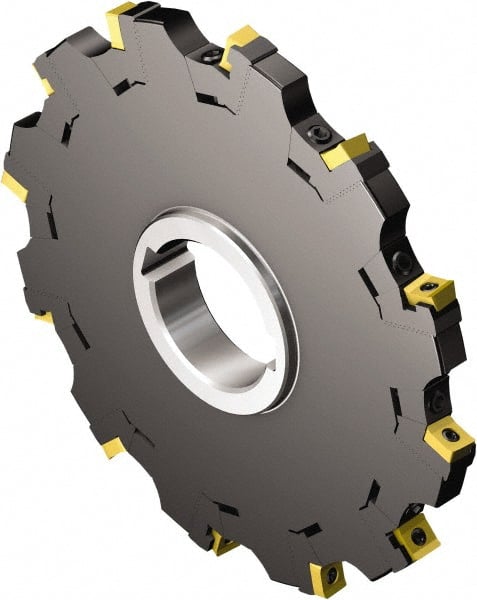

Sandvik Coromant - Arbor Connection, 0.5906" Cutting Width, 4.311" Depth of Cut, 304.8mm Cutter Diam, 2-1/2" Hole Diam, Indexable Slotting Cutter - 2-1/2" Shank Diam, Neutral Cutting Direction
Item #: 49523012
Brand: Sandvik Coromant
Model #: 6448884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 15.00 |
| Cutting Width (Decimal Inch) | 0.5906 |
| Cutting Width (Decimal Inch) | 0.590551 |
| Cutting Width (mm) | 15 |
| Maximum Depth of Cut (mm) | 109.50 |
| Maximum Depth of Cut (Decimal Inch) | 4.3110 |
| Maximum Depth of Cut (Decimal Inch) | 4.311 |
| Maximum Depth of Cut (mm) | 109.5 |
| Cutter Diameter (mm) | 304.80 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Hole Diameter (mm) | 63.50 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (mm) | 63.50 |
| Shank Diameter (Decimal Inch) | 2.5 |
| Modular Connection Size | 2.5 |
| Series | CoroMill 331 |
| Number of Cutter Inserts | 20 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 7600 |
| Maximum RPM | 7600 |
| Minimum Cutting Width (Decimal Inch) | 0.5906 |
| Maximum Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Cutting Width (mm) | 17.50 |
| Maximum Cutting Width (Decimal Inch) | 0.688976 |
| Maximum Cutting Width (mm) | 17.5 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3070 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3070 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Width (mm) | 15.88 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 12.0000 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
