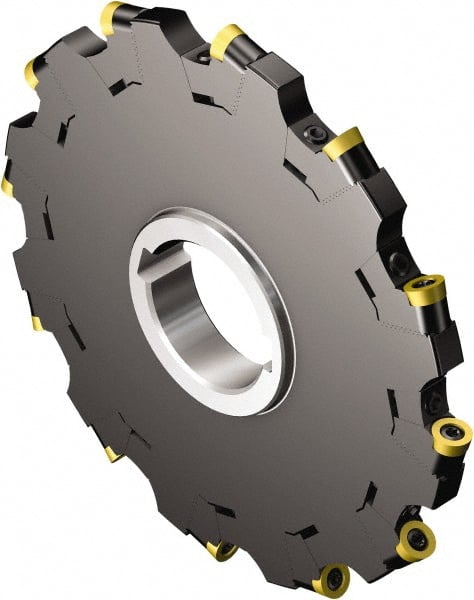

Sandvik Coromant - 50 Connection, 0.3937" Cutting Width, 2.5787" Depth of Cut, 1.9685" Hole Diam, 16 Tooth Indexable Slotting Cutter - N331.32..Sxx.. MQ Toolholder, RCKT 10 T3 M0 Insert, Neutral Cutting Direction
Item #: 49523053
Brand: Sandvik Coromant
Model #: 5738524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 50 |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Cutting Width (Decimal Inch) | 0.393701 |
| Cutting Width (mm) | 10 |
| Maximum Depth of Cut (mm) | 65.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5787 |
| Maximum Depth of Cut (Decimal Inch) | 2.5787 |
| Maximum Depth of Cut (mm) | 65.5 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | 50 |
| Number of Teeth | 16 |
| Toolholder Style | N331.32..Sxx.. MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 10 T3 M0 |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 11000 |
| Maximum RPM | 11000 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Hub Diameter (mm) | 69.00 |
| Hub Diameter (Decimal Inch) | 2.7165 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Keyway Width (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 0.4724 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 10 T3 M0 |
