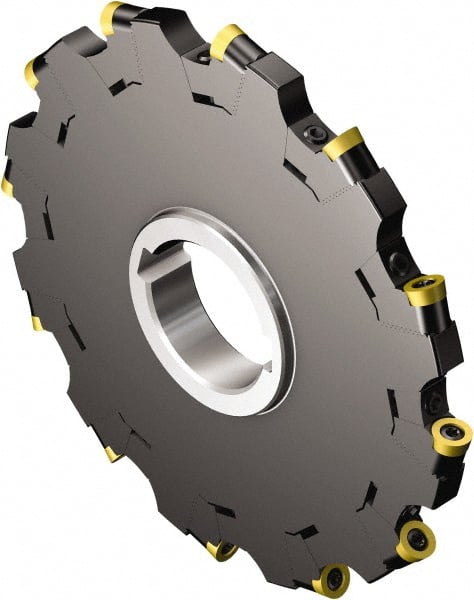

Sandvik Coromant - 40 Connection, 0.4724" Cutting Width, 1.378" Depth of Cut, 5" Cutter Diam, 1.5748" Hole Diam, 10 Tooth Indexable Slotting Cutter - N331.32..Sxx.. MQ Toolholder, RCKT 12 04 M0 Insert, Neutral Cutting Direction
Item #: 49523160
Brand: Sandvik Coromant
Model #: 5737679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 40 |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Cutting Width (Decimal Inch) | 0.472441 |
| Cutting Width (mm) | 12 |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 1.378 |
| Maximum Depth of Cut (mm) | 35 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | 40 |
| Number of Teeth | 10 |
| Toolholder Style | N331.32..Sxx.. MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 12 04 M0 |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 14100 |
| Maximum RPM | 14100 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 12 04 M0 |
