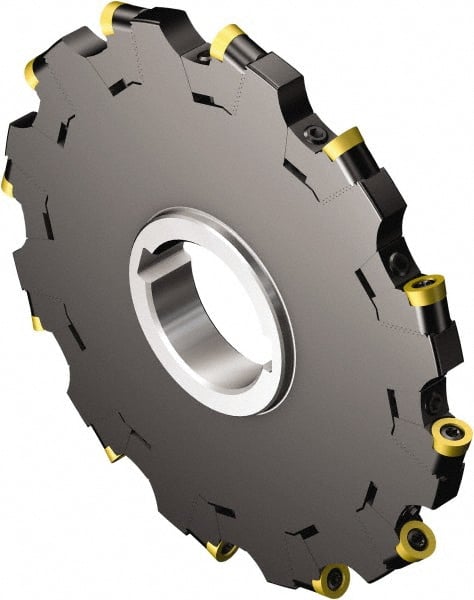

Sandvik Coromant - 32 Connection, 0.6299" Cutting Width, 1.0433" Depth of Cut, 1.2598" Hole Diam, 6 Tooth Indexable Slotting Cutter - N331.32..Sxx.. MQ Toolholder, RCKT 16 06 M0 Insert, Neutral Cutting Direction
Item #: 49523202
Brand: Sandvik Coromant
Model #: 5738027
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 32 |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Cutting Width (Decimal Inch) | 0.629921 |
| Cutting Width (mm) | 16 |
| Maximum Depth of Cut (mm) | 26.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.0433 |
| Maximum Depth of Cut (Decimal Inch) | 1.0433 |
| Maximum Depth of Cut (mm) | 26.5 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Modular Connection Size | 32 |
| Number of Teeth | 6 |
| Toolholder Style | N331.32..Sxx.. MQ |
| Series | CoroMill 331 |
| Insert Style | RCKT 16 06 M0 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 14000 |
| Maximum RPM | 14000 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Through Coolant | No |
| Complete Insert Compatibility1 | RCKT 16 06 M0 |
