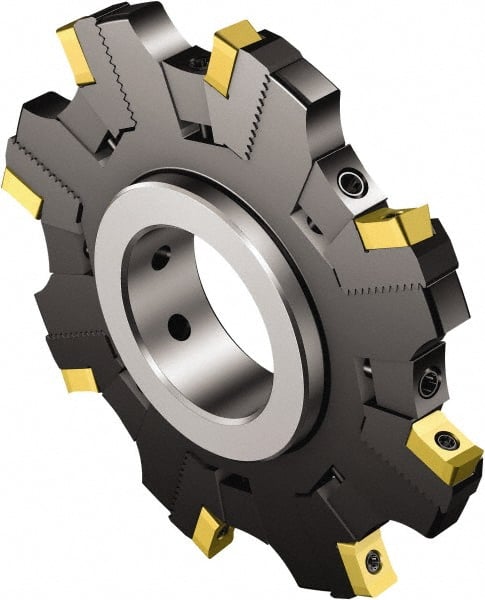

Sandvik Coromant - 1.25 Connection, 4" Cutter Diam, 1-1/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - R/L331.52..Txx Toolholder, N331.1A-08 Insert, Left Hand Cutting Direction
Item #: 49523442
Brand: Sandvik Coromant
Model #: 5734390
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 1.25 |
| Cutter Diameter (mm) | 98.00 |
| Cutter Diameter (Decimal Inch) | 3.8583 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | 1.25 |
| Number of Teeth | 8 |
| Toolholder Style | R/L331.52..Txx |
| Series | CoroMill 331 |
| Insert Style | N331.1A-08 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Left Hand |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 15900 |
| Maximum RPM | 15900 |
| Hub Diameter (mm) | 46.00 |
| Hub Diameter (Decimal Inch) | 1.8110 |
| Hub Diameter (mm) | 46.00 |
| Hub Diameter (Decimal Inch) | 1.8110 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (mm) | 7.92 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-08 |
