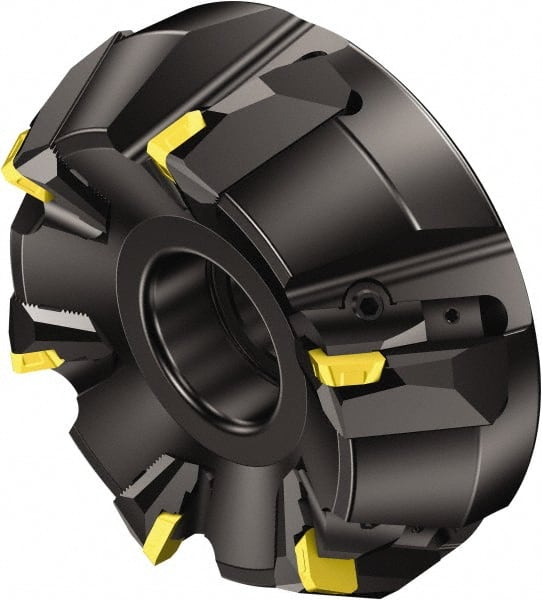

Sandvik Coromant - 203.2mm Cut Diam, 63.5mm Arbor Hole, 18mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 10 Inserts, 360R-2807 Insert, Right Hand Cut, Series CoroMill 360
Item #: 49523855
Brand: Sandvik Coromant
Model #: 5722606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 203.2 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 60 |
| Overall Height (mm) | 80 |
| Insert Compatibility | 360R-2807 |
| Series | CoroMill 360 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.708661 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Wedge |
| Cutter Style | A360..Rxx |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 9.0315 |
| Maximum RPM | 630 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 360R-2807 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 360R-2807 |
| Insert Holding Method | Wedge |
| Maximum RPM | 630 |
| Toolholder Material | Steel |
| Through Coolant | No |
