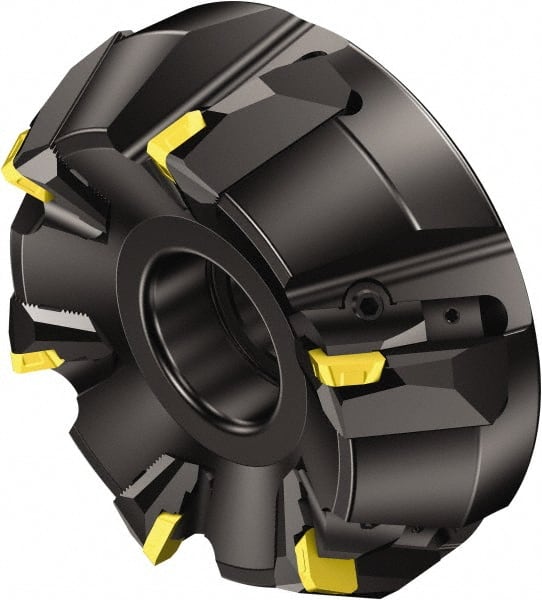

Sandvik Coromant - 250mm Cut Diam, 60mm Arbor Hole, 13mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 12 Inserts, 360R-1906 Insert, Right Hand Cut, Series CoroMill 360
Item #: 49524267
Brand: Sandvik Coromant
Model #: 5758968
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250 |
| Cutting Diameter (Decimal Inch) | 9.8425 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 60 |
| Overall Height (mm) | 80 |
| Insert Compatibility | 360R-1906 |
| Series | CoroMill 360 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.511811 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Wedge |
| Cutter Style | 360..Qxx |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 10.8898 |
| Maximum RPM | 510 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 360R-1906 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 360R-1906 |
| Insert Holding Method | Wedge |
| Maximum RPM | 510 |
| Toolholder Material | Steel |
| Through Coolant | No |
