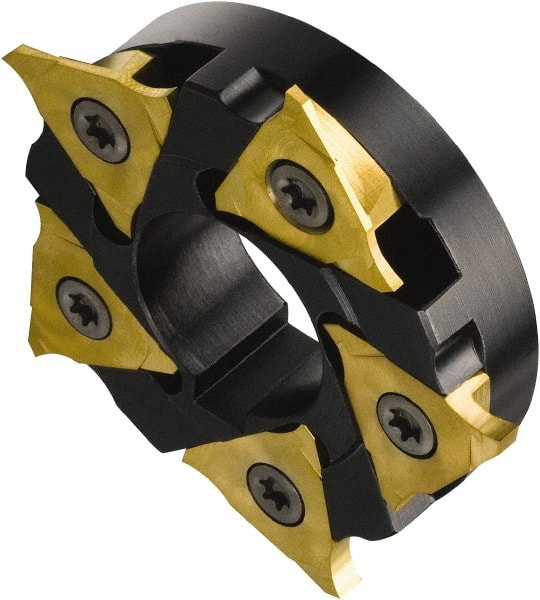

Sandvik Coromant - 0.0512" Cutting Width, 0.1969" Depth of Cut, 63mm Cutter Diam, 0.8661" Hole Diam, Indexable Slotting Cutter - 0.8661" Shank Diam, 328..Sxx Toolholder, Neutral Cutting Direction
Item #: 49524564
Brand: Sandvik Coromant
Model #: 5758762
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 1.30 |
| Cutting Width (Decimal Inch) | 0.0512 |
| Cutting Width (Decimal Inch) | 0.051181 |
| Cutting Width (mm) | 1.3 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.19685 |
| Maximum Depth of Cut (mm) | 5 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Inch) | 0.866142 |
| Modular Connection Size | 22 |
| Toolholder Style | 328..Sxx |
| Series | CoroMill 328 |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Neutral |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 11900 |
| Maximum RPM | 11900 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Keyway Width (mm) | 6.00 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Through Coolant | No |
| Complete Insert Compatibility1 | 328R13-130 00-GM |
| Overall Height (mm) | 14.00 |
| Overall Height (Decimal Inch) | 0.5512 |
