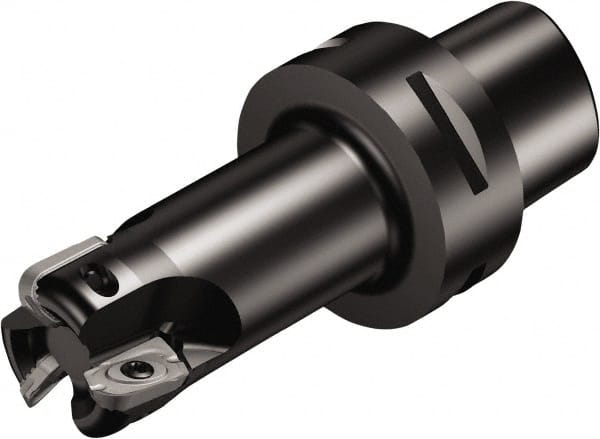

Sandvik Coromant - 6 Inserts, 84mm Cut Diam, 80mm Arbor Diam, 18mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 132mm High, R790-2205.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49524895
Brand: Sandvik Coromant
Model #: 5912567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Decimal Inch) | 3.3071 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 132.00 |
| Overall Height (Decimal Inch) | 5.1969 |
| Insert Compatibility | R790-2205.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R790..Cx |
| Maximum RPM | 14000 |
| ISO Number | R790-084C8S1-22HX |
| Complete Insert Compatibility | R790-2205.. |
| Toolholder Material | Steel |
