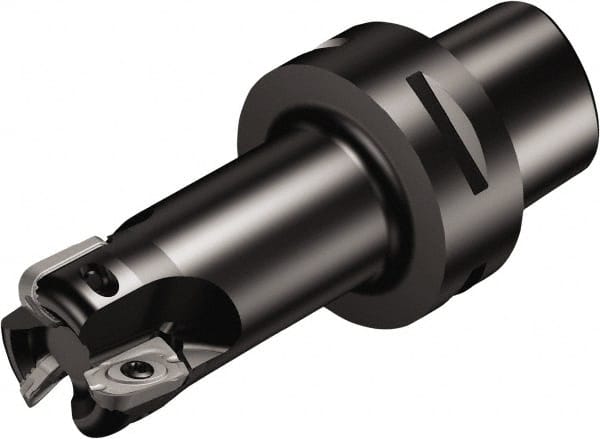

Sandvik Coromant - 9 Inserts, 84mm Cut Diam, 80mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 123mm High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49524903
Brand: Sandvik Coromant
Model #: 5912566
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Decimal Inch) | 3.3071 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 123.00 |
| Overall Height (Decimal Inch) | 4.8425 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | R790..Cx |
| Maximum RPM | 14000 |
| ISO Number | R790-084C8S1-16H |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
