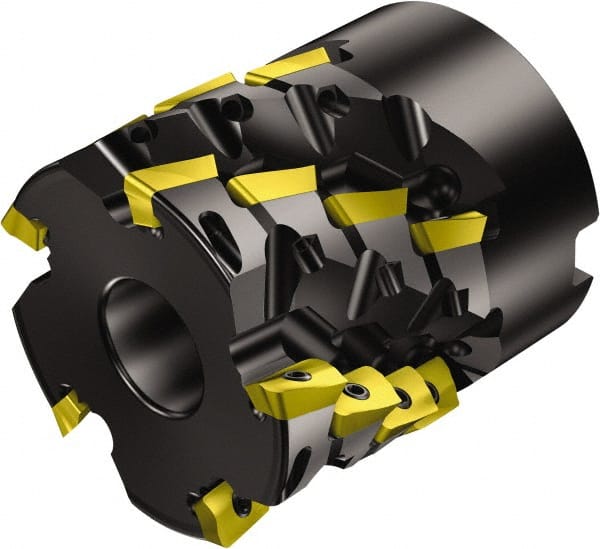

Sandvik Coromant - 27 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 43mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 68.6mm High, R390-18.. Insert Compatibility, Series CoroMill 390
Item #: 49525058
Brand: Sandvik Coromant
Model #: 5746642
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 68.60 |
| Overall Height (Decimal Inch) | 2.7008 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 27 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Qxx (LE) |
| Maximum RPM | 3600 |
| ISO Number | R390-200Q60-43L |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
