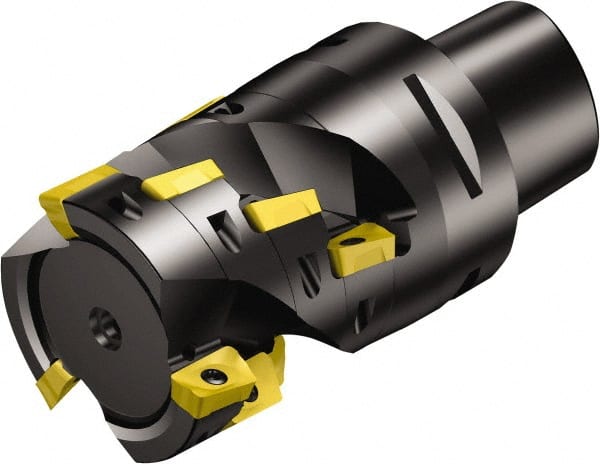

Sandvik Coromant - 20 Inserts, 100mm Cut Diam, 80mm Arbor Diam, 71mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 164.7mm High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49525090
Brand: Sandvik Coromant
Model #: 5745524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 164.70 |
| Overall Height (Decimal Inch) | 6.4843 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 71.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7953 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Cx (LE) |
| Maximum RPM | 5200 |
| ISO Number | R390-100C8-71M |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
