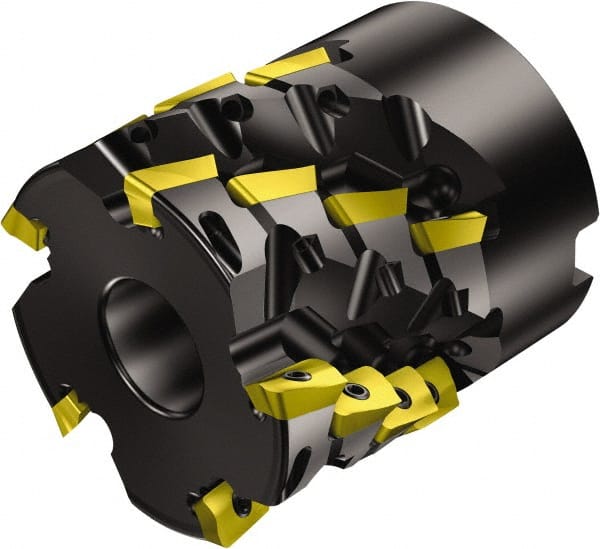

Sandvik Coromant - 18 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 54mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 74.4mm High, R390-11.. Insert Compatibility, Series CoroMill 390
Item #: 49525157
Brand: Sandvik Coromant
Model #: 5745580
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 74.40 |
| Overall Height (Decimal Inch) | 2.9291 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 54.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1260 |
| Cutting Direction | R390-11.. |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Qxx (LE) |
| Maximum RPM | 16600 |
| ISO Number | R390-050Q22-54L |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
