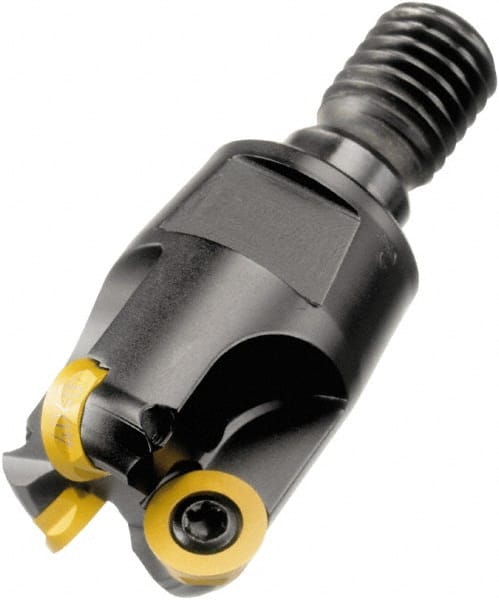

Sandvik Coromant - 40mm Cutting Diam, 5mm Max Depth of Cut, M16 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-1032.. Insert Style, R300..Txx Toolholder, Through Coolant
Item #: 49525462
Brand: Sandvik Coromant
Model #: 5744593
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 5 |
| Insert Style | R300-1032.. |
| Toolholder Style | R300..Txx |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.7716 |
| Maximum RPM | 1000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1811 |
| Projection (mm) | 45.00 |
| Projection (Decimal Inch) | 1.7716 |
| Modular Connection Size | M16 |
