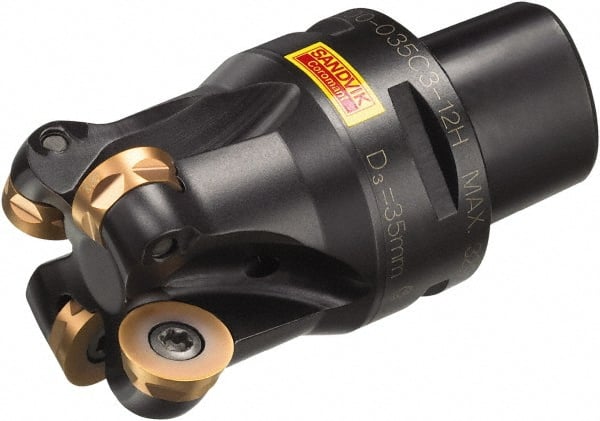

Sandvik Coromant - 100mm Cutting Diam, 10mm Max Depth of Cut, C8 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-2060.. Insert Style, R300..Cx Toolholder, Through Coolant
Item #: 49525744
Brand: Sandvik Coromant
Model #: 5744365
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 6 |
| Insert Style | R300-2060.. |
| Toolholder Style | R300..Cx |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0394 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 6 |
| Minimum Cutting Diameter (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Maximum RPM | 12843 |
| Maximum Cutting Diameter (Decimal Inch) | 3.93701 |
| Minimum Cutting Diameter (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
| Modular Connection Size | C8 |
