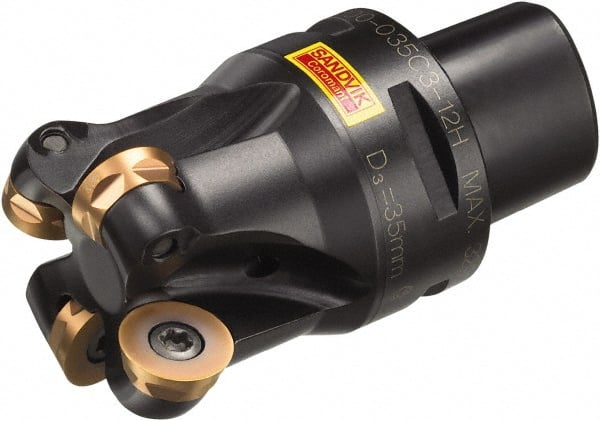

Sandvik Coromant - 52mm Cutting Diam, 8mm Max Depth of Cut, C5 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-1648.. Insert Style, R300..Cx Toolholder, Through Coolant
Item #: 49525868
Brand: Sandvik Coromant
Model #: 5744298
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 4 |
| Insert Style | R300-1648.. |
| Toolholder Style | R300..Cx |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 36.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Maximum RPM | 20600 |
| Maximum Cutting Diameter (Decimal Inch) | 2.04724 |
| Minimum Cutting Diameter (Decimal Inch) | 1.4173 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Modular Connection Size | C5 |
