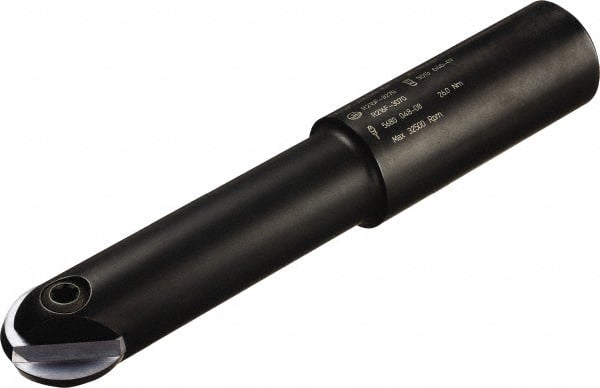

Sandvik Coromant - 25mm Cut Diam, 3.8mm Max Depth of Cut, 25mm Shank Diam, 121mm OAL, Indexable Ball Nose End Mill - 65mm Head Length, 25 Straight Shank, R216F..AxxS Toolholder
Item #: 49526007
Brand: Sandvik Coromant
Model #: 5743737
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9842 |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 25 |
| Shank Diameter (mm) | 25.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxS |
| Series | CoroMill 216F |
| Overall Length (mm) | 121.00 |
| Overall Length (Decimal Inch) | 4.7638 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 65.00 |
| Head Length (Decimal Inch) | 2.5591 |
| Maximum RPM | 40000 |
| Projection (mm) | 65.00 |
| Projection (Decimal Inch) | 2.5591 |
