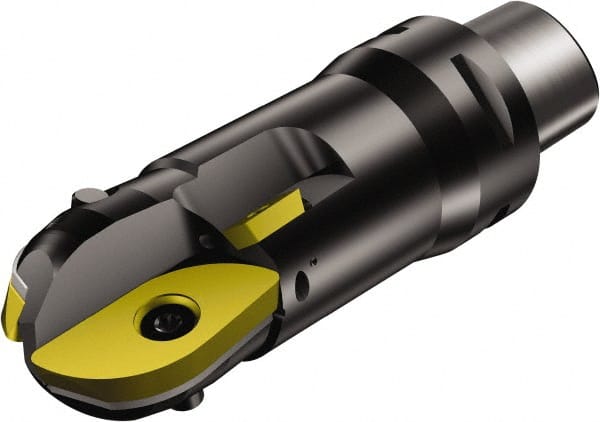

Sandvik Coromant - 40mm Cut Diam, 31.6mm Max Depth of Cut, 40mm Shank Diam, 104mm OAL, Indexable Ball Nose End Mill - 80mm Head Length, C4 Weldon Flat Shank, R216..Cx Toolholder
Item #: 49526064
Brand: Sandvik Coromant
Model #: 5743820
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 31.60 |
| Maximum Depth of Cut (Decimal Inch) | 1.2441 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | C4 |
| Shank Diameter (mm) | 40.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..Cx |
| Series | CoroMill 216 |
| Overall Length (mm) | 104.00 |
| Overall Length (Decimal Inch) | 4.0945 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Maximum RPM | 8000 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1496 |
