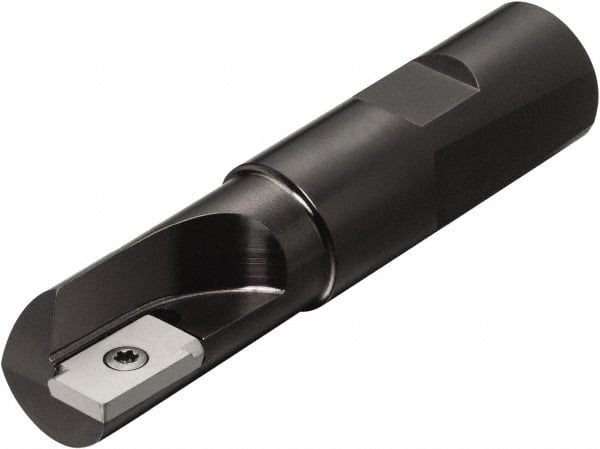

Sandvik Coromant - 1 Insert, 12mm Cut Diam, 16mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 73mm High, R216.2-080204-1A Insert Compatibility, Series U-Max
Item #: 49526122
Brand: Sandvik Coromant
Model #: 5743037
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 73.00 |
| Overall Height (Decimal Inch) | 2.8740 |
| Insert Compatibility | R216.2-080204-1A |
| Series | U-Max |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Cutter Style | R216.2 (WELDON) |
| Maximum RPM | 25200 |
| ISO Number | R216.2-712 |
| Complete Insert Compatibility | R216.2-080204-1A |
| Toolholder Material | Steel |
