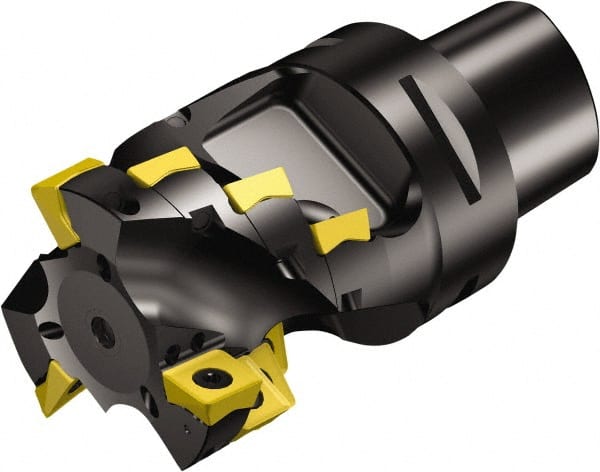

Sandvik Coromant - 100mm Cut Diam, 80mm Arbor Diam, 108mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 208mm High, 690-140608M-E-SL & 690-140610M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 49526320
Brand: Sandvik Coromant
Model #: 5764742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Overall Height (mm) | 208.00 |
| Overall Height (Decimal Inch) | 8.1890 |
| Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 108.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.2520 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | 690..Cx |
| Maximum RPM | 5000 |
| ISO Number | 690-100C8-14108M |
| Complete Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Toolholder Material | Steel |
