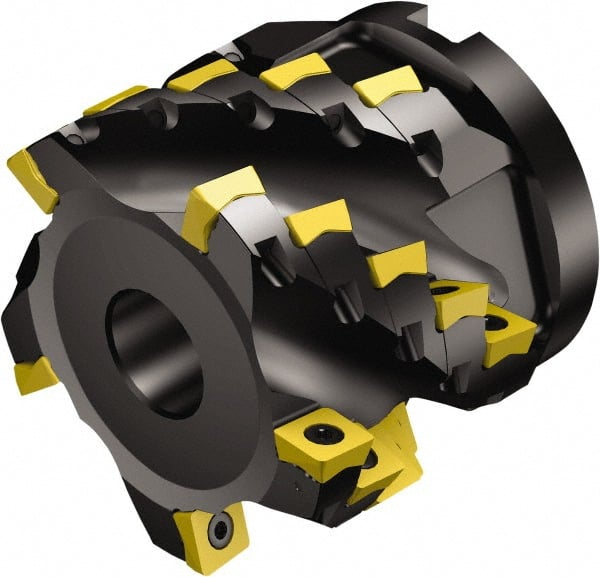

Sandvik Coromant - 63mm Cut Diam, 27mm Arbor Diam, 49mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 80mm High, 690-140608M-E-SL & 690-140610M-P-SL Insert Compatibility, Series CoroMill 690
Item #: 49526403
Brand: Sandvik Coromant
Model #: 5764775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 49.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.9291 |
| Cutting Direction | 690-140608M-E-SL |
| Insert Holding Method | Screw |
| Cutter Style | 690..Qxx |
| Maximum RPM | 5000 |
| ISO Number | 690-063Q27-1449H |
| Complete Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Toolholder Material | Steel |
