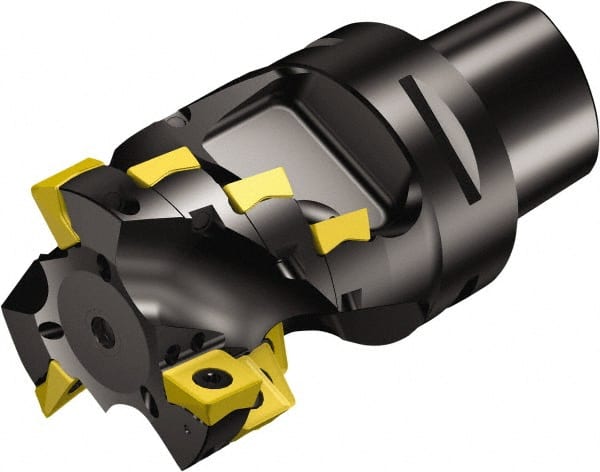

Sandvik Coromant - 63mm Cut Diam, 63mm Arbor Diam, 112mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 194mm High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 49526437
Brand: Sandvik Coromant
Model #: 5764762
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 194.00 |
| Overall Height (Decimal Inch) | 7.6378 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 112.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.4094 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Cutter Style | 690..Cx |
| Maximum RPM | 5000 |
| ISO Number | 690-063C6-10112H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
