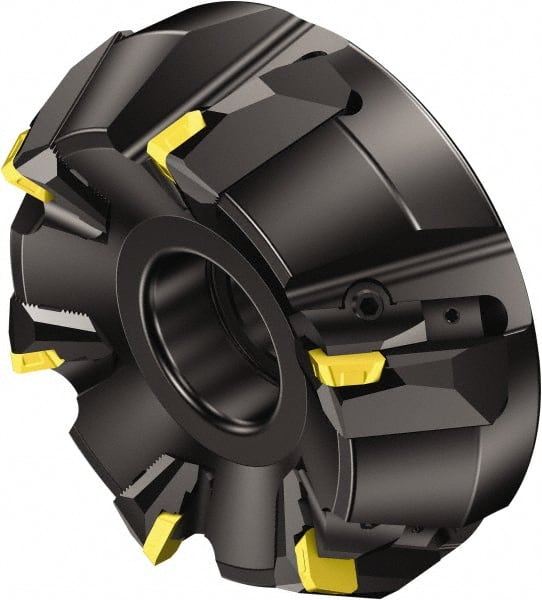

Sandvik Coromant - 152.4mm Cut Diam, 38.1mm Arbor Hole, 13mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 6 Inserts, 360R-1906 Insert, Right Hand Cut, Series CoroMill 360
Item #: 49527773
Brand: Sandvik Coromant
Model #: 5722647
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 152.4 |
| Cutting Diameter (Decimal Inch) | 6 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 60 |
| Overall Height (mm) | 80 |
| Insert Compatibility | 360R-1906 |
| Series | CoroMill 360 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.511811 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Wedge |
| Cutter Style | A360..Rxx |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum Body Diameter (Decimal Inch) | 7.0472 |
| Maximum RPM | 840 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 360R-1906 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 360R-1906 |
| Insert Holding Method | Wedge |
| Maximum RPM | 840 |
| Toolholder Material | Steel |
| Through Coolant | No |
