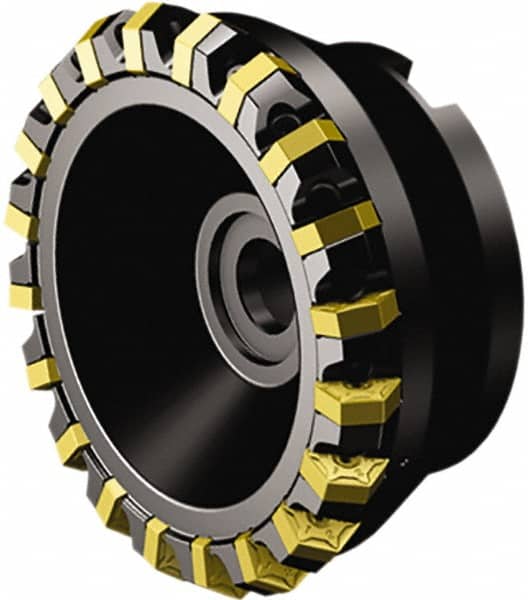

Sandvik Coromant - 160mm Cut Diam, 40mm Arbor Hole, 6mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill - 16 Inserts, HNEF 090508 Insert, Right Hand Cut, Series CoroMill S-60
Item #: 49527948
Brand: Sandvik Coromant
Model #: 6169936
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160 |
| Cutting Diameter (Decimal Inch) | 6.29921 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 60 |
| Overall Height (mm) | 63 |
| Insert Compatibility | HNEF 090508 |
| Series | CoroMill S-60 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.23622 |
| Number of Cutter Inserts | 16 |
| Cutter Style | S-60..Qxx |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 7600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNEF 090508 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | HNEF 090508 |
| Maximum RPM | 7600 |
| Toolholder Material | Steel |
| Through Coolant | No |
